Bilge Pump 01 Series

  • 01 Series 750GPH Bilge Pump
  • 01 Series 750GPH Bilge Pump
  • 01 Series 750GPH Bilge Pump
01 Series 750GPH Bilge Pump 01 Series 750GPH Bilge Pump 01 Series 750GPH Bilge Pump

01 Series 750GPH Bilge Pump

  • Voltage: 12V/24
  • Hose Ports: ID19mm / 3/4''
  • Head: 3.0m
  • Weight: 0.73lbs (0.33kg)
  • Product description: NAIADY non-automatic bilge pumps offer standard action activated by a panel or float switch. Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.
  • Click to buy


Features & Benefits

· Computerized operation - no float switch required

· Anti-Airlock protection

· Easy clean snap-lock strainer bases

· Compact, efficient, long life motor

· Completely submersible,Rust and corrosion protection

· Silent and vibrationless operation

· Ignition protected

· And 350GPH(1324 LPH),500GPH(1892 LPH),750GPH(2838 LPH)and 1100GPH(4163LPH)models for your choice


Typical Applications

· Marine · RV · Water System · Industrial · Scientific Research


STANDARD PUMP CONFIGURATIONS

Model
Flow Rate
Volts
Max Draw
Fuse Amps
Head
Lead
Hose Port
N.W/G.W
A01-107501
750GPH
12V
2.4A
4.0A
3.0 m
1 m
19 mm / 3/4''
0.33/0.40 kg
A01-207501
750GPH
24V
1.2A
3.0A
3.0 m
1 m
19 mm / 3/4"
0.33/0.42 kg

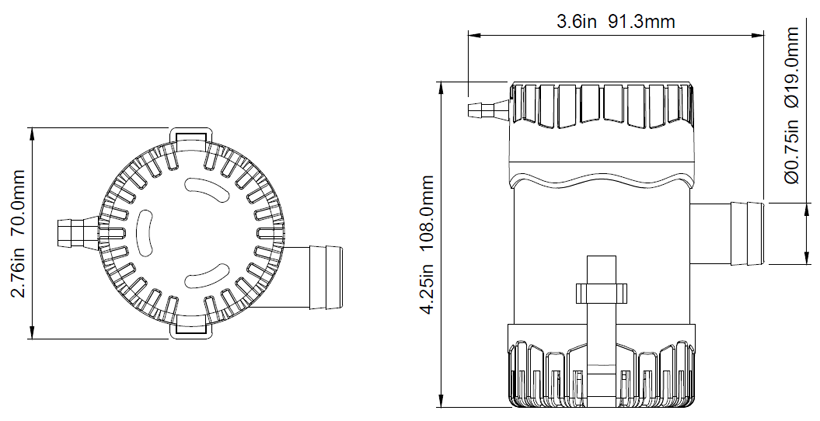

DIMENSIONS
