Features & Benefits
· PA66 composite pump head and PPS pump plate.
· Self-priming
· Agricultural Spraying
· "Santoprene" diaphragm
· Pressure and flow can be customized according to customer requirements.
· Super wear resistance gear
Typical Applications
· Marine · RV · Industrial · Scientific Research · Agricultural
STANDARD PUMP CONFIGURATIONS
|
Model
|
Open Flow
|
Volts
|
Max Draw
|
Switch
|
Pressure Off (psi/bar)
|
Ports
|
N.W/G.W
|
|
A07-112201
|
4.5LPM/1.2GPM
|
12V
|
4.5A
|
Demand
|
100 / 7.0
|
3/8” Barb
|
1.2/1.3 kg
|
|
A07-212201
|
4.5LPM/1.2GPM
|
24V
|
2.5A
|
Demand
|
100 / 7.0
|
3/8” Barb
|
1.2/1.3 kg
|
|
A07-114201
|
5.2LPM/1.4GPM
|
12V
|
5.0A
|
Demand
|
100 / 7.0
|
3/8” Barb
|
1.2/1.3 kg
|
|
A07-214201
|
5.2LPM/1.4GPM
|
24V
|
3.0A
|
Demand
|
100 / 7.0
|
3/8” Barb
|
1.2/1.3 kg
|
|
A07-116201
|
5.8LPM/1.6GPM
|
12V
|
5.5A
|
Demand
|
80 / 5.5
|
3/8” Barb
|
1.2/1.3 kg
|
|
A07-216201
|
5.8LPM/1.6GPM
|
24V
|
3.1A
|
Demand
|
80 / 5.5
|
3/8” Barb
|
1.2/1.3 kg
|

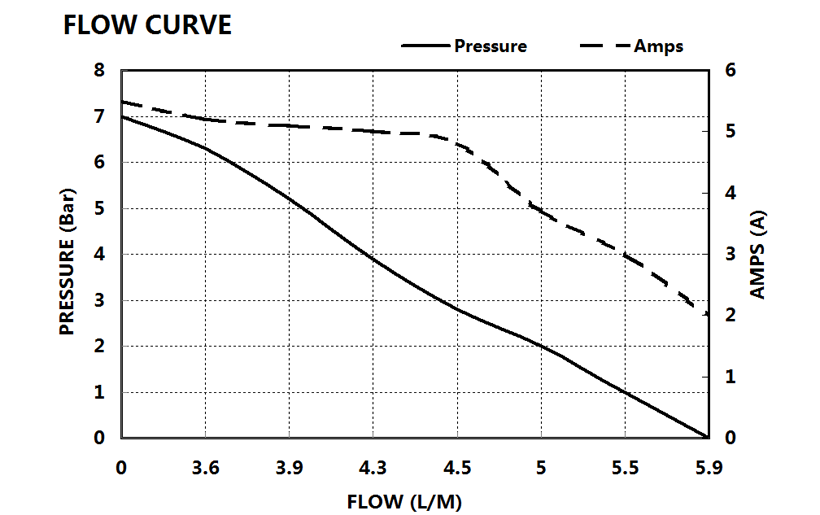

PERFORMANCE CURVE
A07-116201

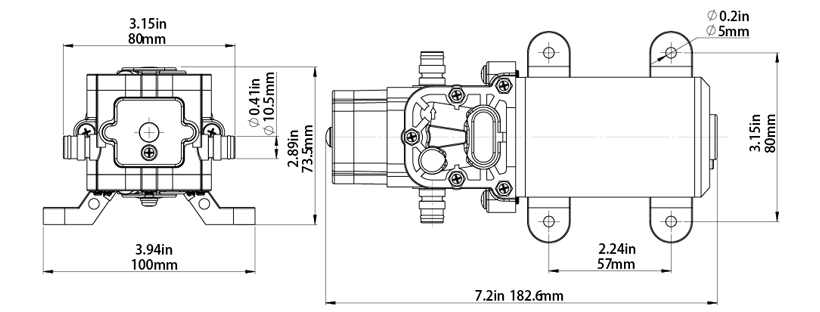

DIMENSIONS
