Diaphragm Pump 21 Series

  • Voltage: 12V/24
  • Pressure Off: 35 - 55 PSI
  • Ports: 3/8
  • Open Flow: 2.0 - 4.3LPM
  • Product description: 12V/24V DC pressure diaphragm pump has self-priming performance. Pressure and flow can be customized according to customer requirements.
  • Click to buy

Features & Benefits

· PA66 composite pump head and PPS pump plate.

· Self-priming

· Agricultural Spraying

· "Santoprene" diaphragm

· Pressure and flow can be customized according to customer requirements.



Typical Applications

· Marine · RV · Industrial · Scientific Research · Agricultural


STANDARD PUMP CONFIGURATIONS

Model
Open Flow
Volts
Max Draw
Switch
Pressure Off (psi/bar)
Ports
N.W/G.W
A07-105201
2.0LPM/0.5GPM
12V
1.6A
Demand
55 / 3.8
3/8” Barb
0.6/0.7 kg
A07-205201
2.0LPM/0.5GPM
24V
0.8A
Demand
55 / 3.8
3/8” Barb
0.6/0.7 kg
A07-111201
4.3LPM/1.1GPM
12V
2.5A
Demand
35 / 2.4
3/8” Barb
0.6/0.7 kg
A07-211201
4.3LPM/1.1GPM
24V
1.3A
Demand
35 / 2.4
3/8” Barb
0.6/0.7 kg
A07-107201
2.6LPM/0.7GPM
12V
2.1A
Demand
70 / 4.8
3/8” Barb
0.6/0.7 kg
A07-207201
2.6LPM/0.7GPM
24V
1.1A
Demand
70 / 4.8
3/8” Barb
0.6/0.7 kg
A07-108201
3.1LPM/0.8GPM
12V
2.6A
Demand
70 / 4.8
3/8” Barb
0.6/0.7 kg
A07-208201
3.1LPM/0.7GPM
24V
1.5A
Demand
70 / 4.8
3/8” Barb
0.6/0.7 kg

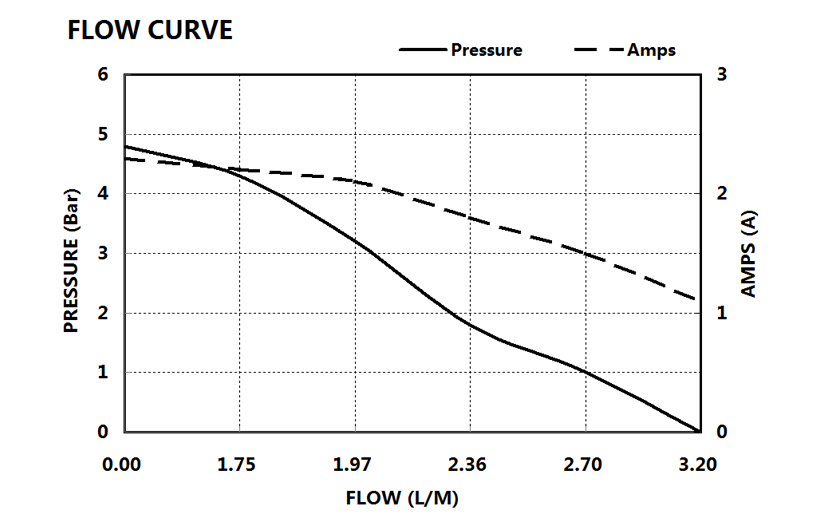

PERFORMANCE CURVE

 A07-108201

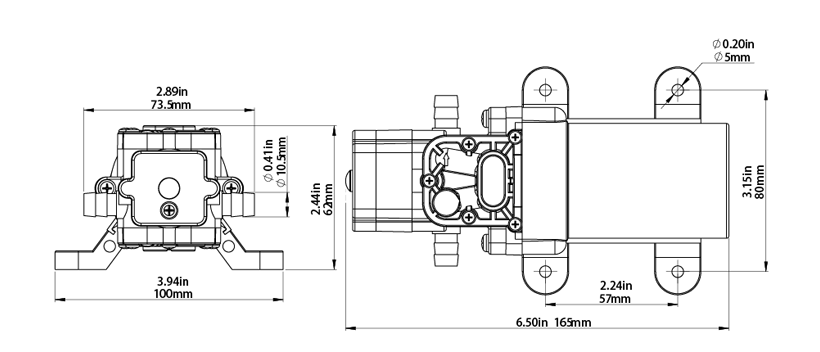

DIMENSIONS
