Float Switch 05 Series

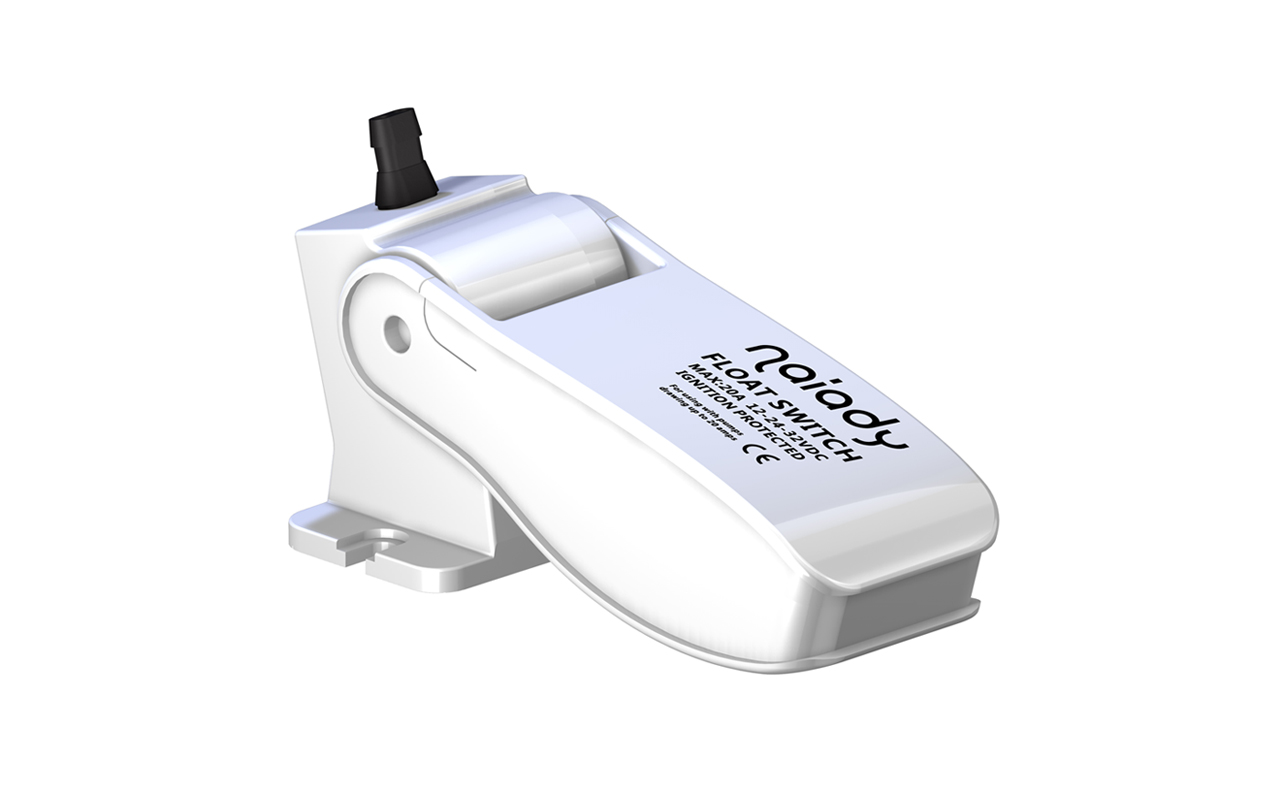

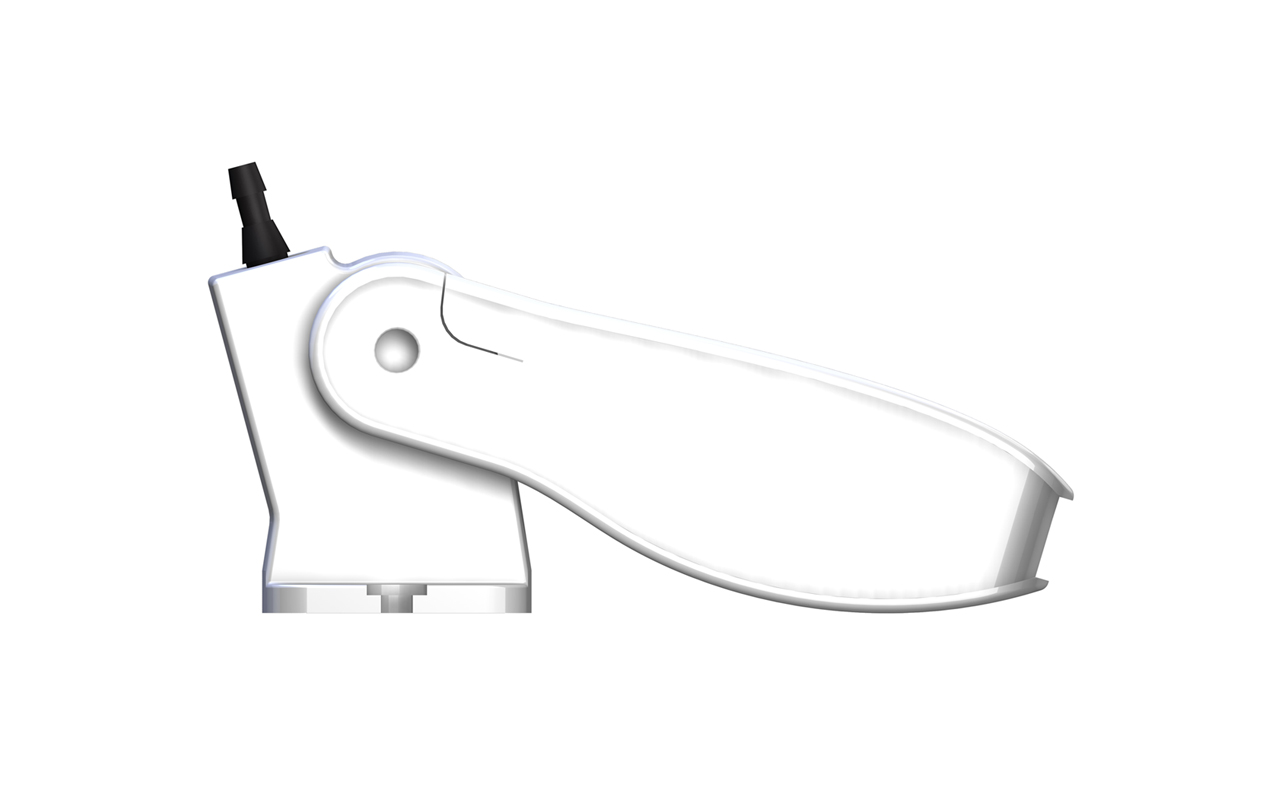

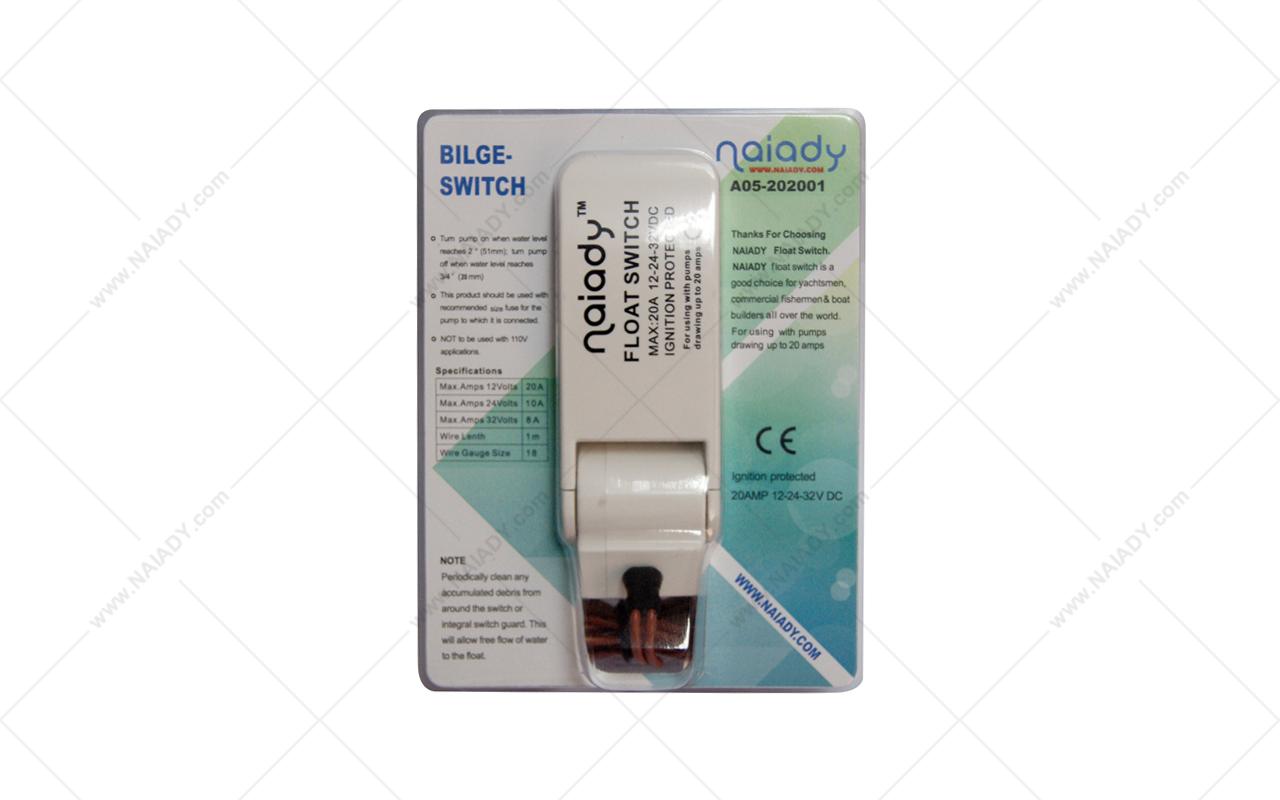

05 Series Float Switch

Voltage: 12V/24V/32V
Max Amps: 20A
Lead: 1.0m
Weight: 0.42lbs (0.16kg)
Product description: NAIADY 12-24-32VDC Bilge Pump Float Switches are the Switch of choice for selective boaters all over the world. Featuring quality design and construction to offer reliable engagement of your bilge pum
Click to buy

Features & Benefits

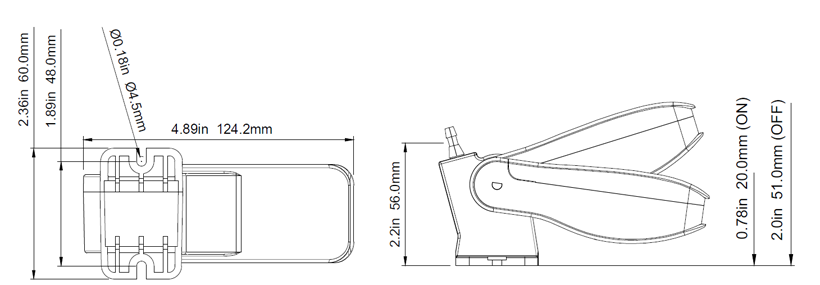

· Turn pump "ON" when water level reaches 2" (51mm)

· Turn pump "OFF" when water level reaches 3/4"(20mm)

· With new large silver contacts, the work is more stable

· Works with all brands bilge pumps and submersible pumps

· Max Amps at 12volts is 20Amps

· Max Amps at 24volts is 10Amps

· Max Amps at 32volts is 8Amps

Typical Applications

· Marine · RV · Water System · Industrial · Scientific Research

STANDARD PUMP CONFIGURATIONS
