Bilge Pump 03 Series

  • 03 Series 2000GPH Bilge Pump
  • 03 Series 2000GPH Bilge Pump
03 Series 2000GPH Bilge Pump03 Series 2000GPH Bilge Pump

03 Series 2000GPH Bilge Pump

  • Voltage: 12V/24V
  • Hose Ports: ID29mm / 1-1/8''
  • Head: 6.0m
  • Leads: 14 AWG
  • Product description: NAIADY non-automatic bilge pumps offer standard action activated by a panel or float switch. Removable strainer for easy replacement or in the event that the pump becomes clogged with debris.
  • Click to buy


Features & Benefits

· Computerized operation - no float switch required

· Anti-Airlock protection

· Easy clean snap-lock strainer bases

· Compact, efficient, long life motor

· Completely submersible,Rust and corrosion protection

· Silent and vibrationless operation

· Ignition protected

· And 1500GPH(5678 LPH),2000GPH(7570 LPH)models for your choice


Typical Applications

· Marine · RV · Water System · Industrial · Scientific Research


STANDARD PUMP CONFIGURATIONS

Model
Flow Rate
Volts
Max Draw
Fuse Amps
Head
Lead
Hose Port
N.W/G.W
A03-120001
2000GPH
12V
8.0A
12.0A
6.0 m
1 m
ID 29mm / 1-1/8'' hose barb
1.13/1.21 kg
A03-220001
2000GPH
24V
4.0A
8.0A
6.0 m
1 m
ID 29mm / 1-1/8'' hose barb
1.13/1.21 kg

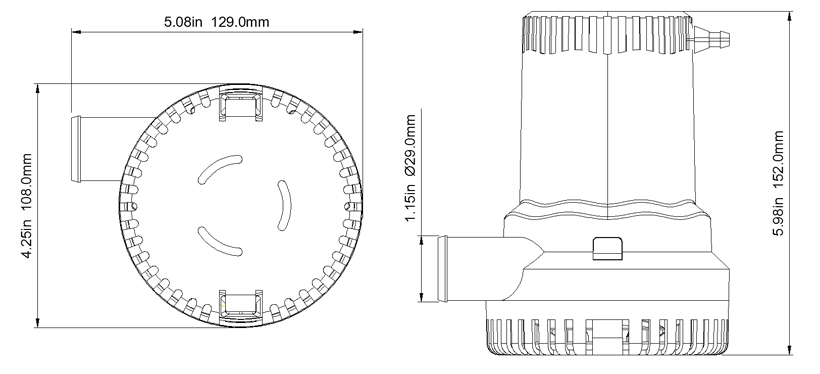

DIMENSIONS
